QurE | Quarantine unit for recovery Emergency, and Ecology
YEAR
2020
LOCATION
Tainan
SITE AREA
72.9 m²
BUILDING AREA
-
STATUS
Completed
TYPOLOGY
COLLABORATOR
NCKU
Bio-architecture Formosana (BaF) designs a circular negative pressure quarantine unit to address the emergency

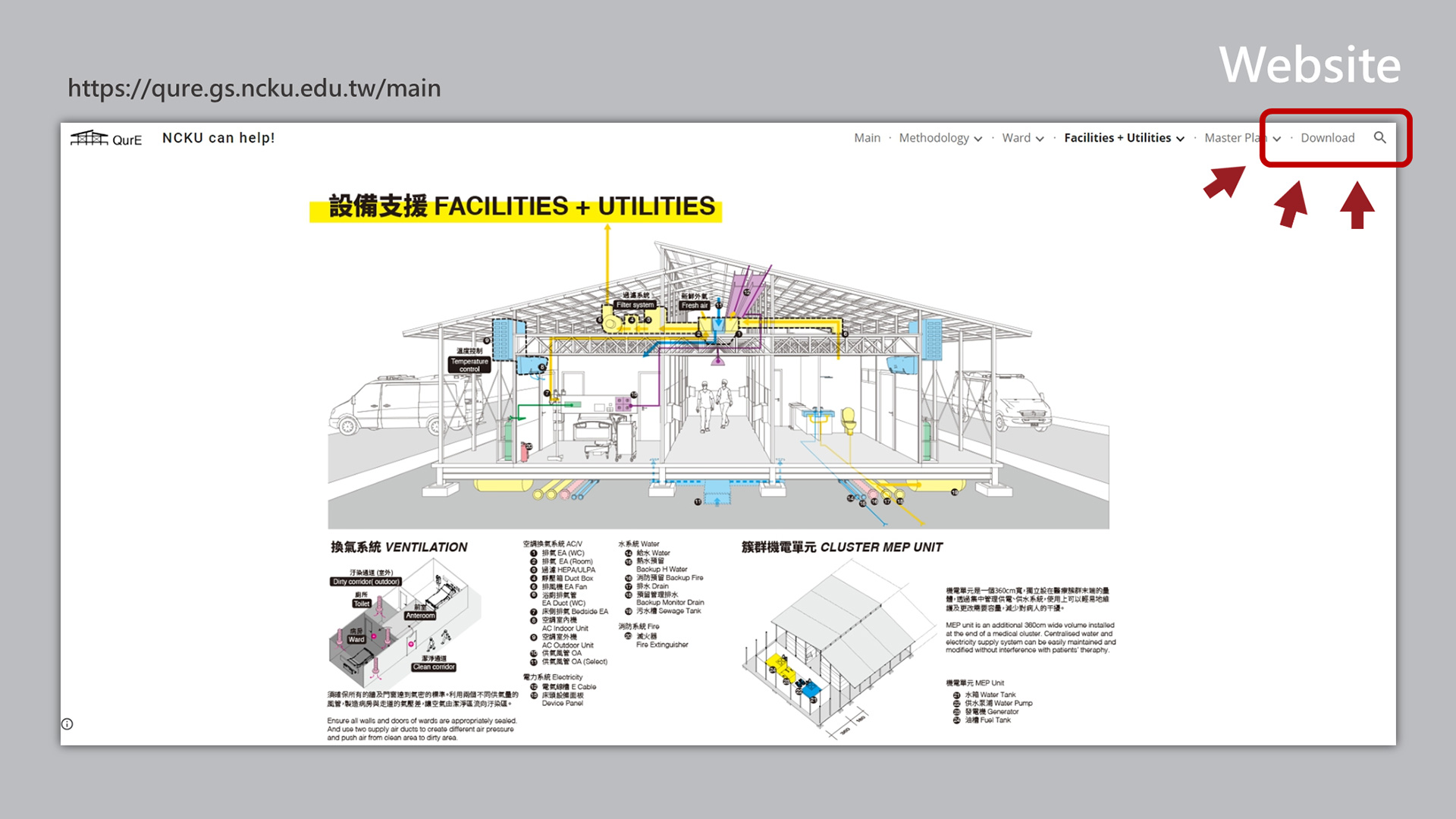

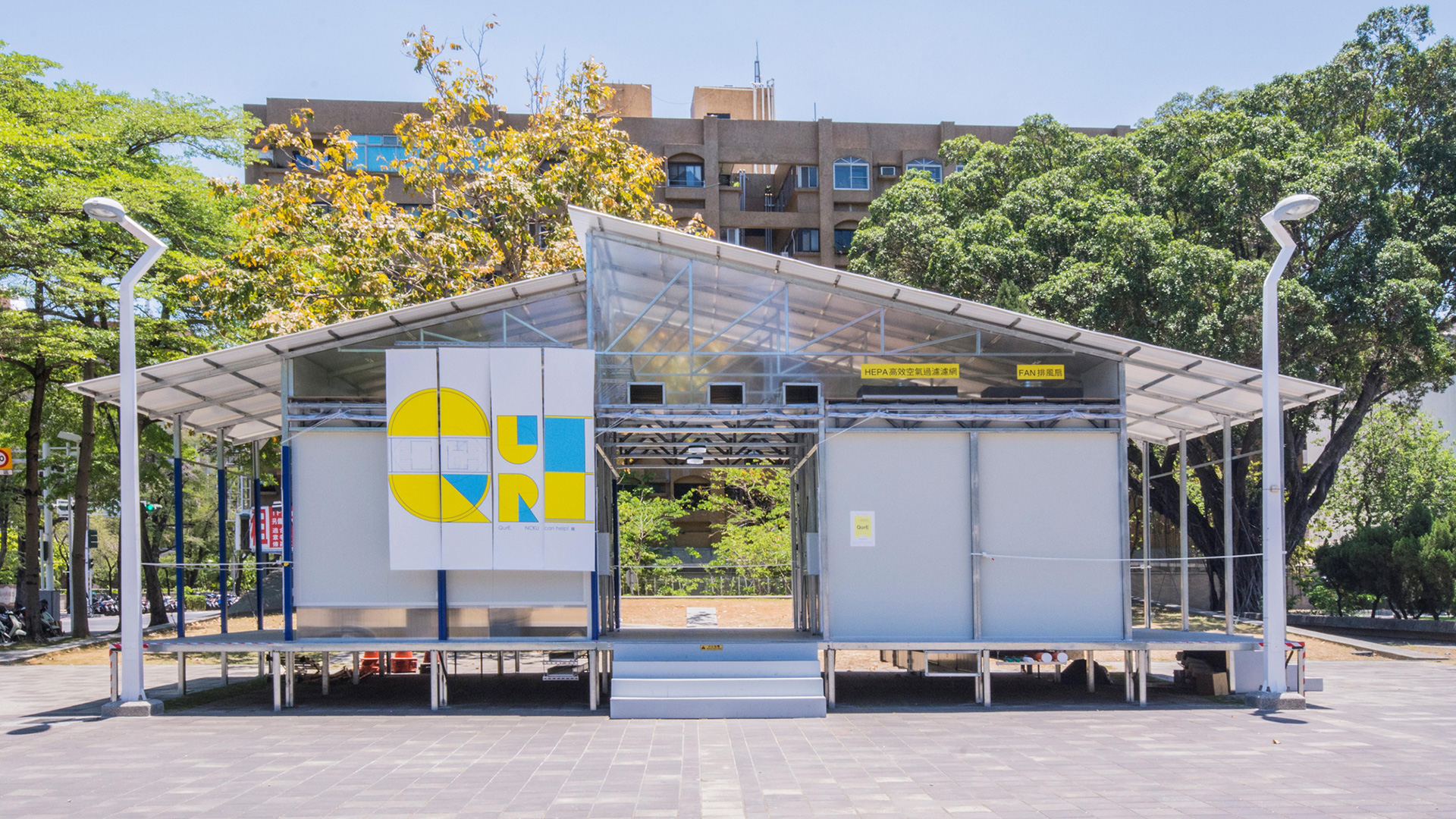

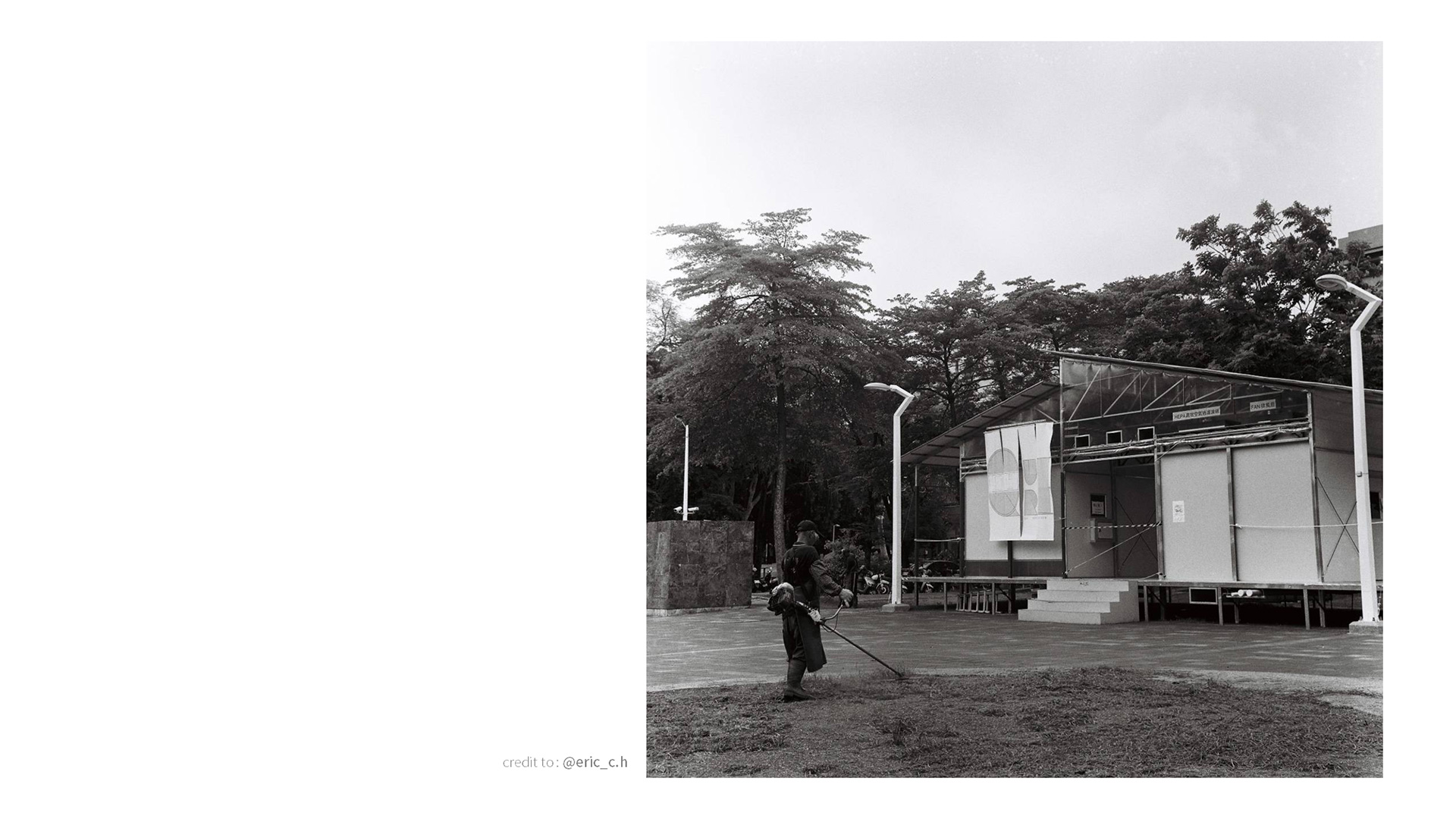

In the past two weeks, QurE-team was formed to develop this design. On 28th of April, we have announced the design with a press event at Taiwan National Cheng Kung University (NCKU) K-hall with the presentation of a real-size mock-up at the plaza. On the same day, a website which contains the downloadable design manual of the prototyping was made public. This design will be an open source to share with the global community.

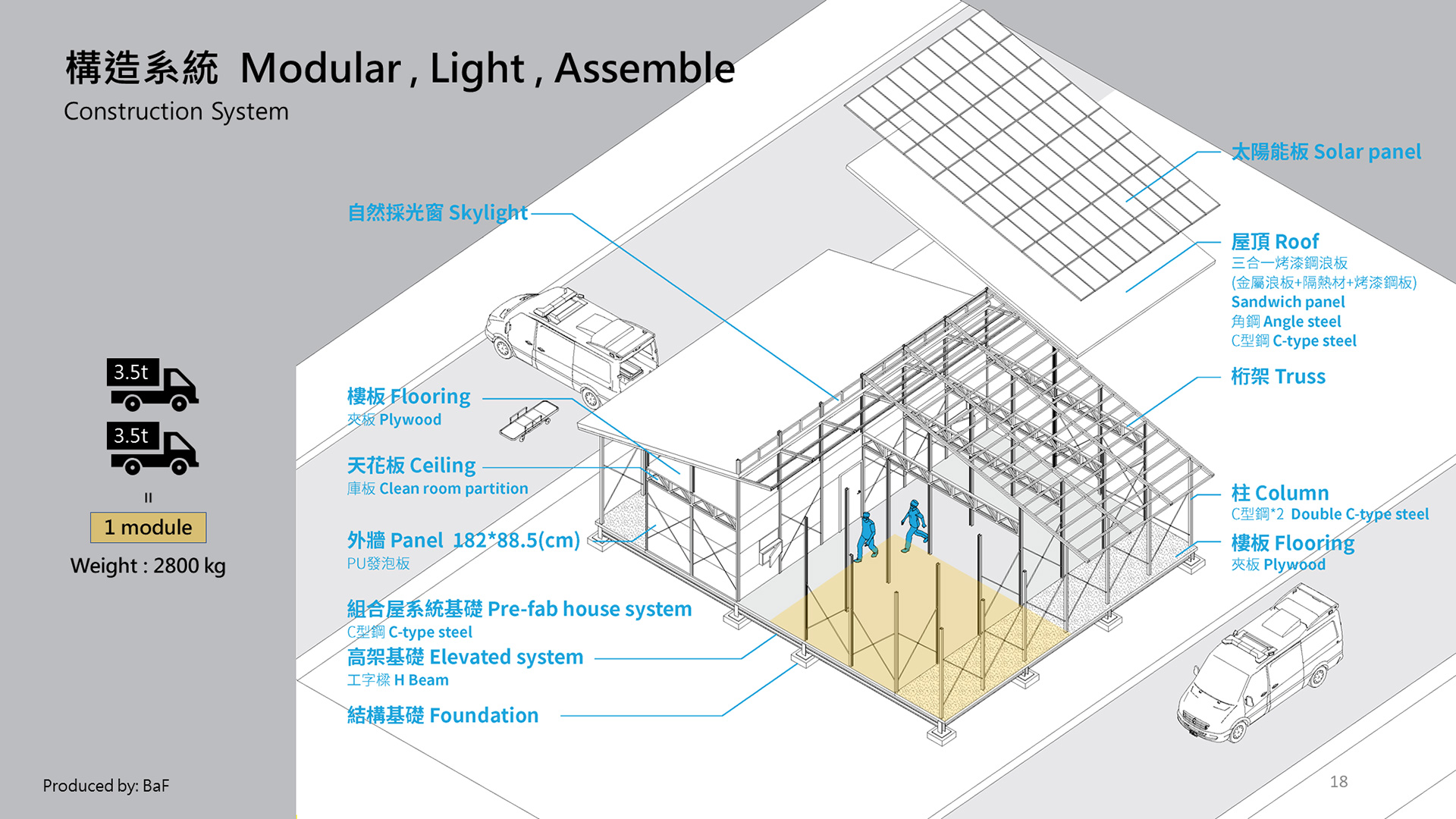

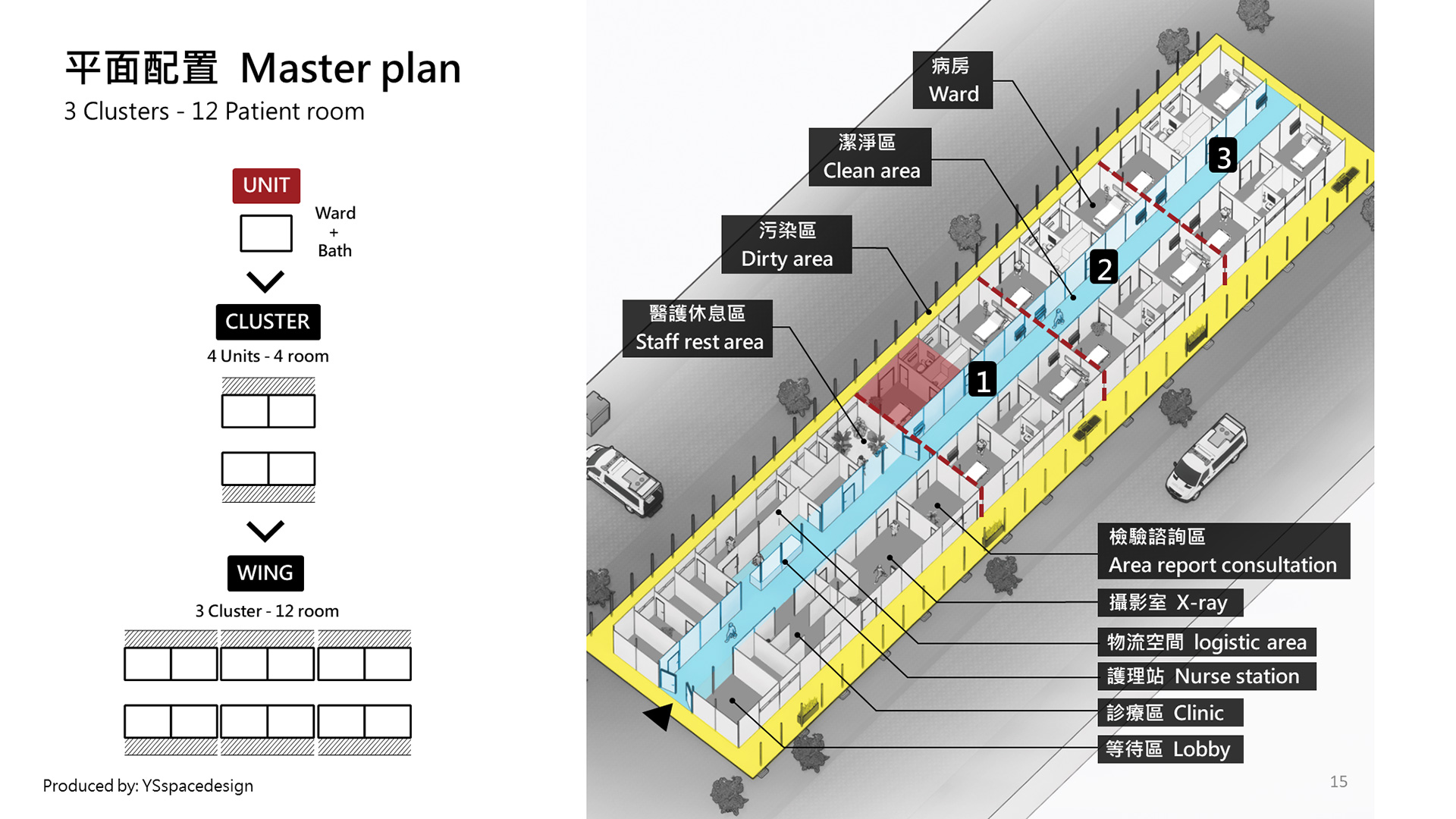

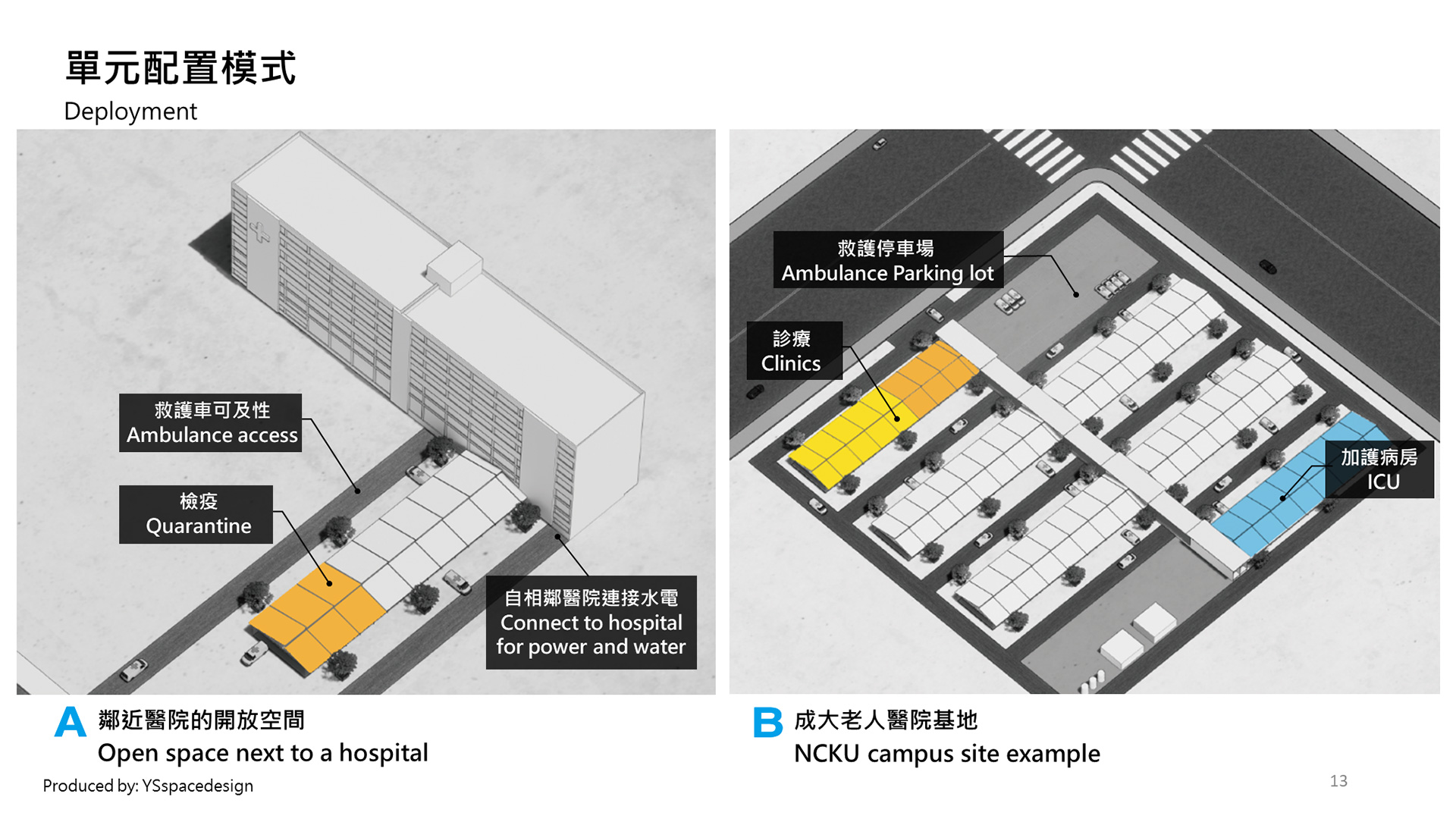

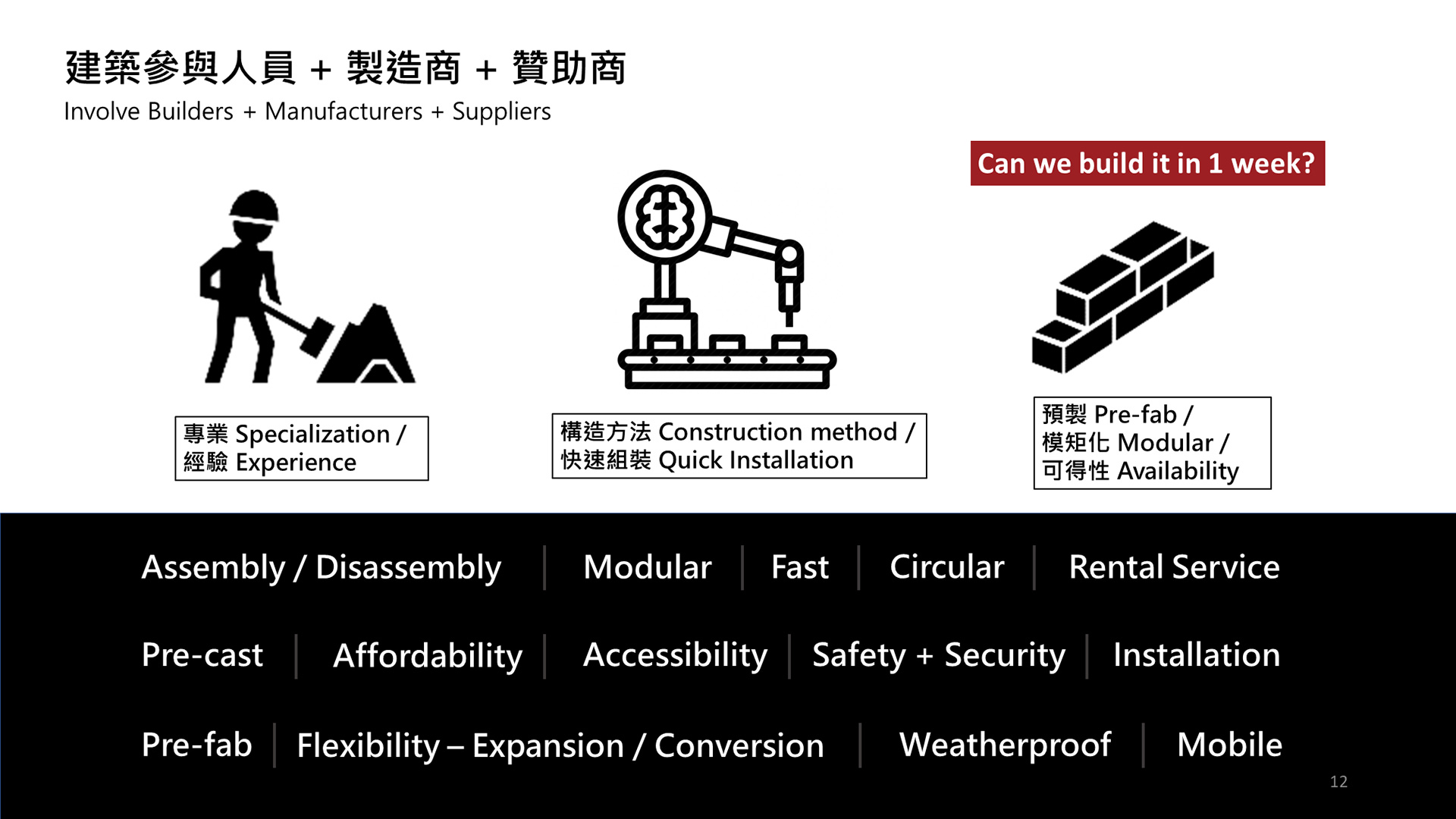

The mobile emergency quarantine hospital proposes a few key considerations which include lightweight, fast, modular, flexible for expansion and reduction, affordable, weatherproof, mobile, safe and secure. The material for this shall be readily available and standardize enough for quick fabrication. The idea considers pre-fabrication and on-site assembly while minimizing in-situ construction. These units can be quickly constructed to respond to various terrains and conditions with minimal changes.

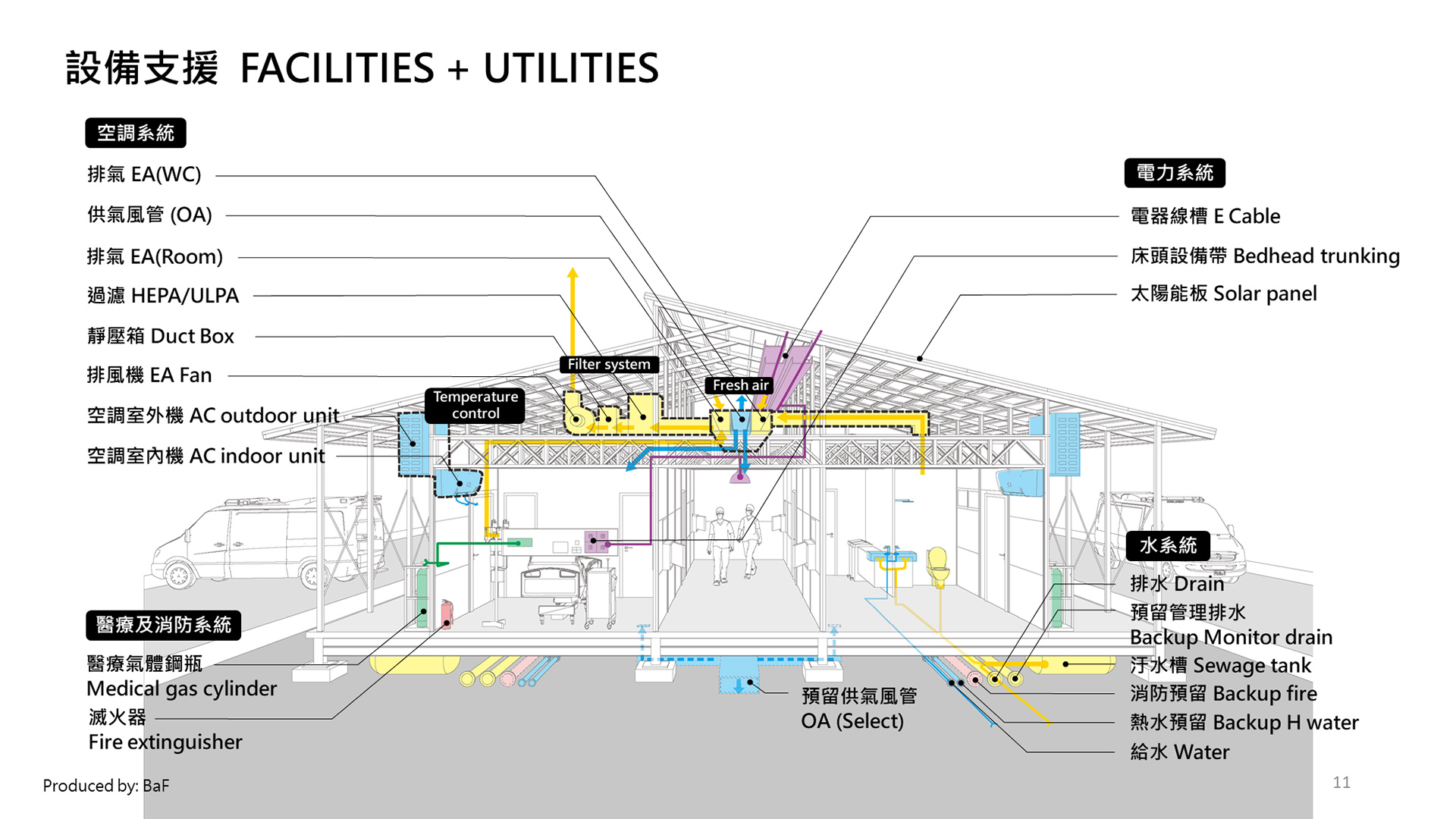

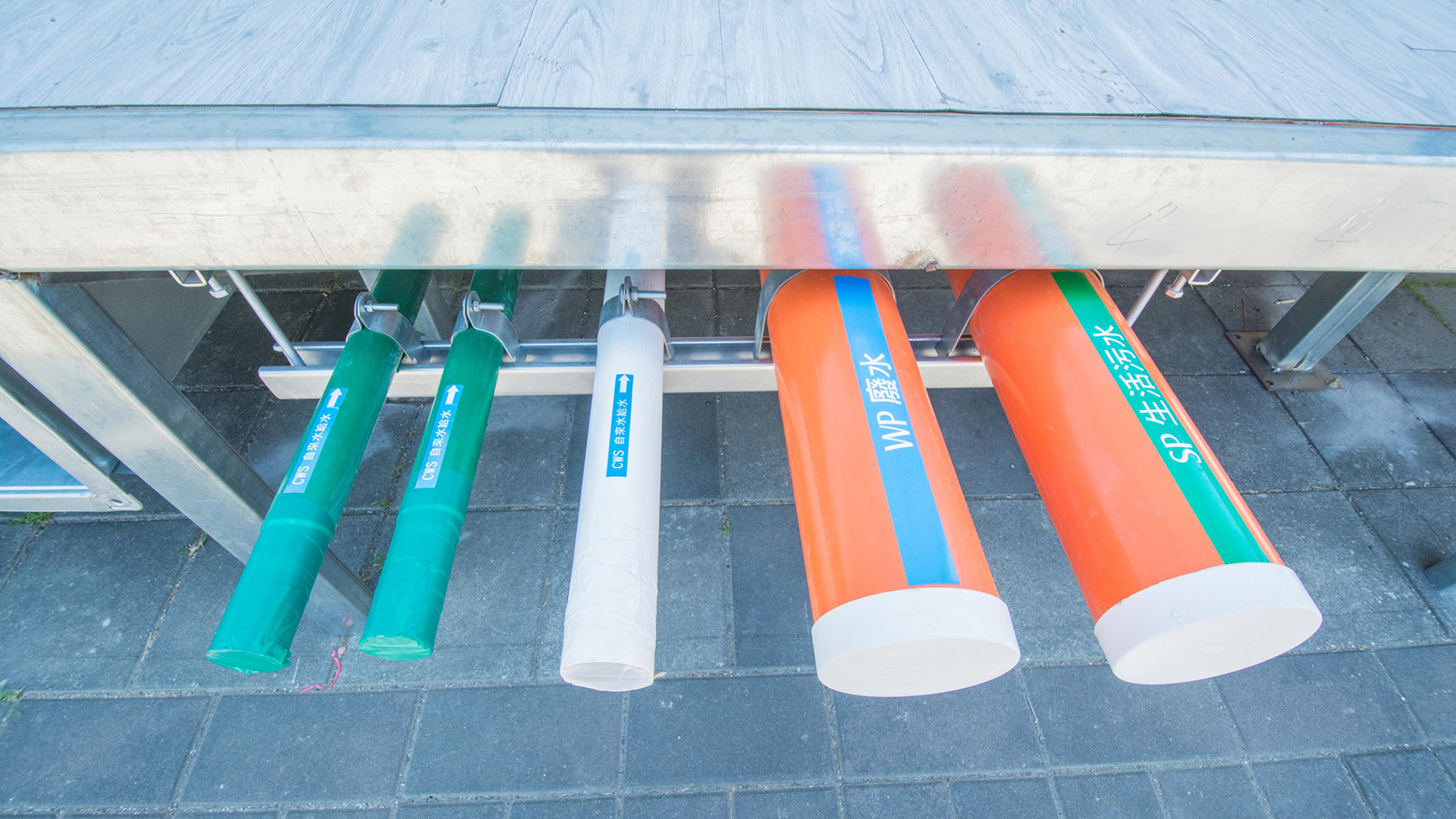

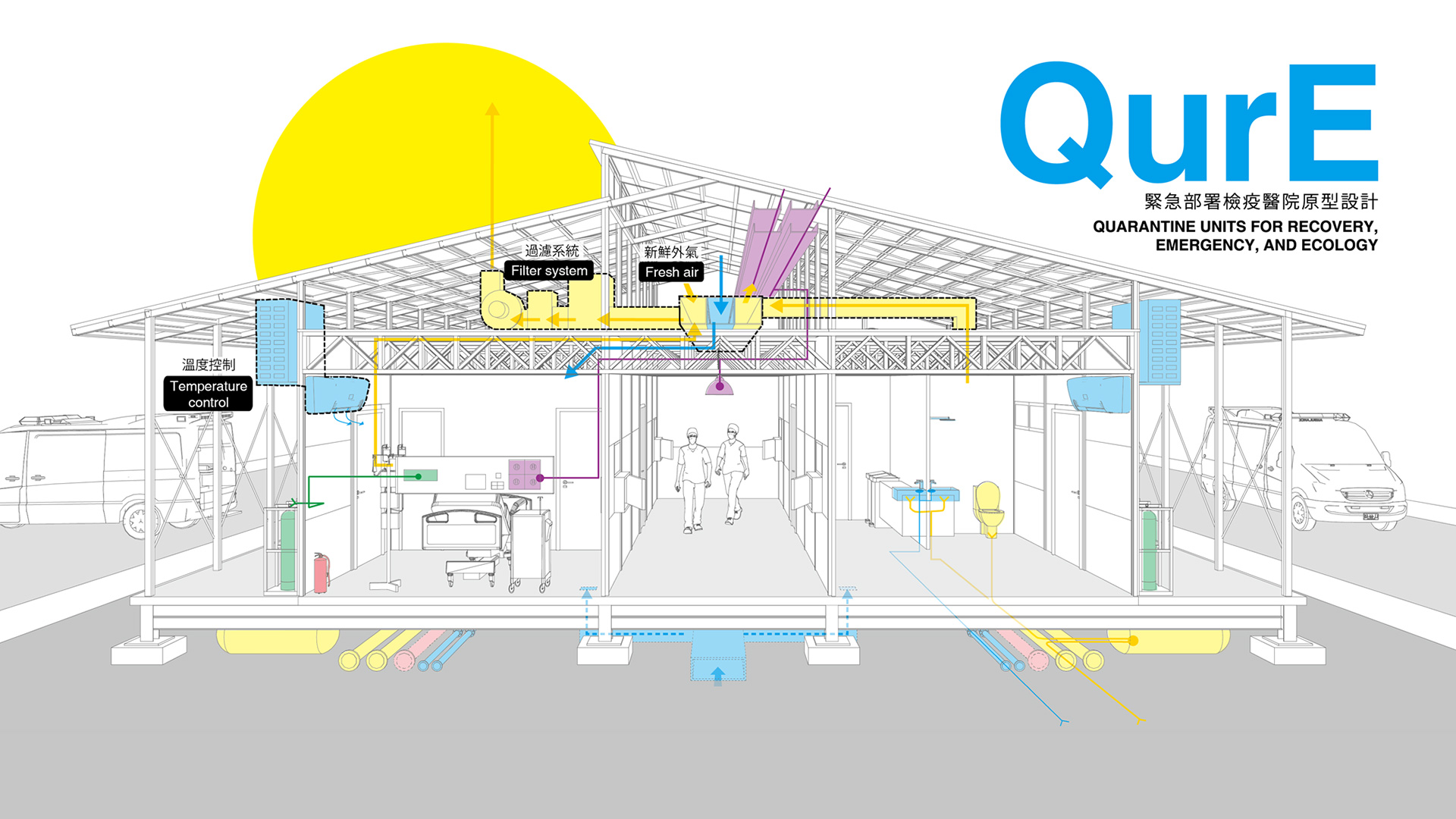

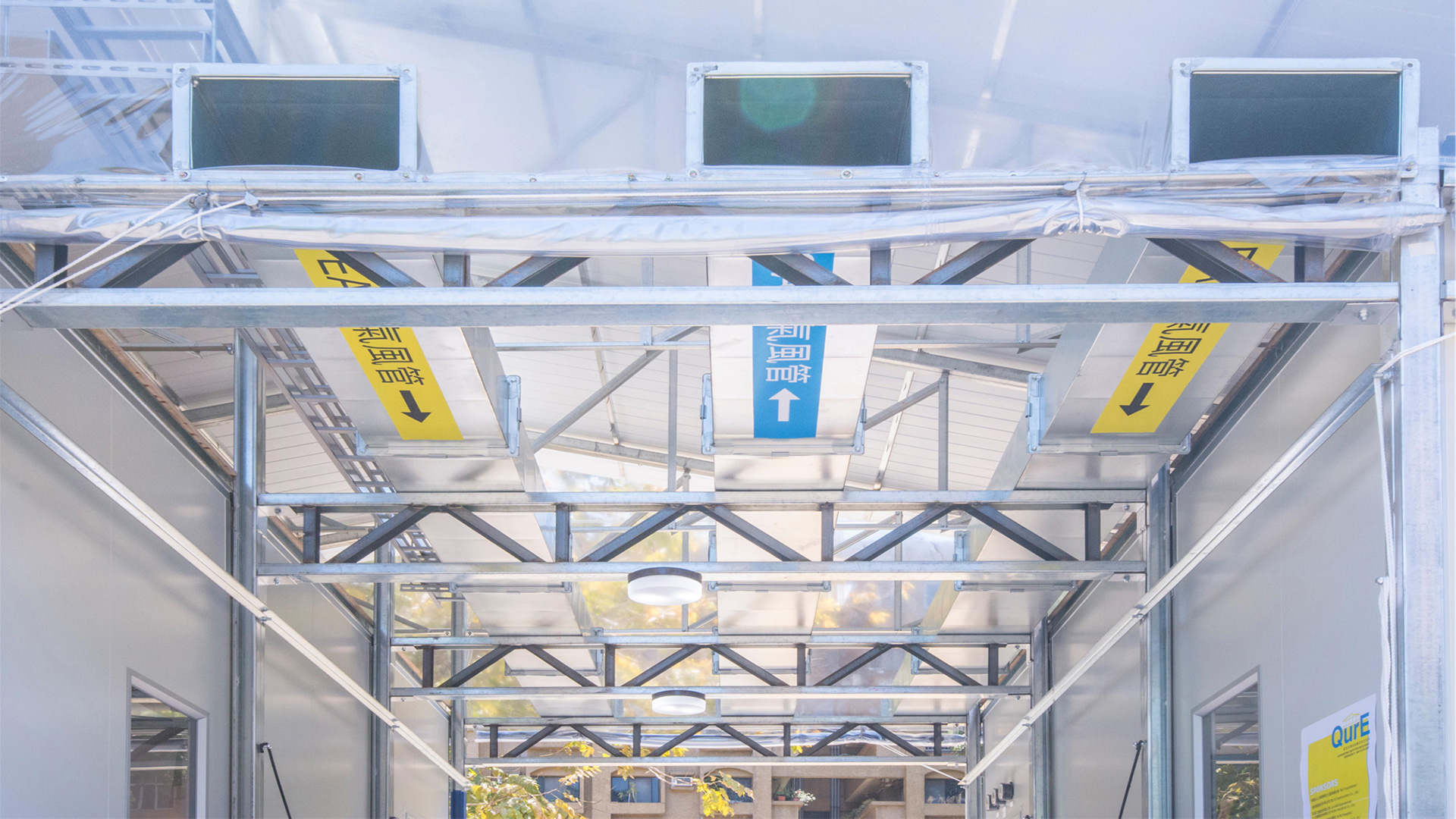

Weather consideration and energy saving is also one of the main design issues of QurE. In the hot and humid climate of Taiwan, pitched roofs and raised floors provide passive insulation and prevent from flooding in the event of typhoon. The ceiling spaces and raised floors accommodate the mechanical, plumbing and medical equipment required for the quarantine unit.

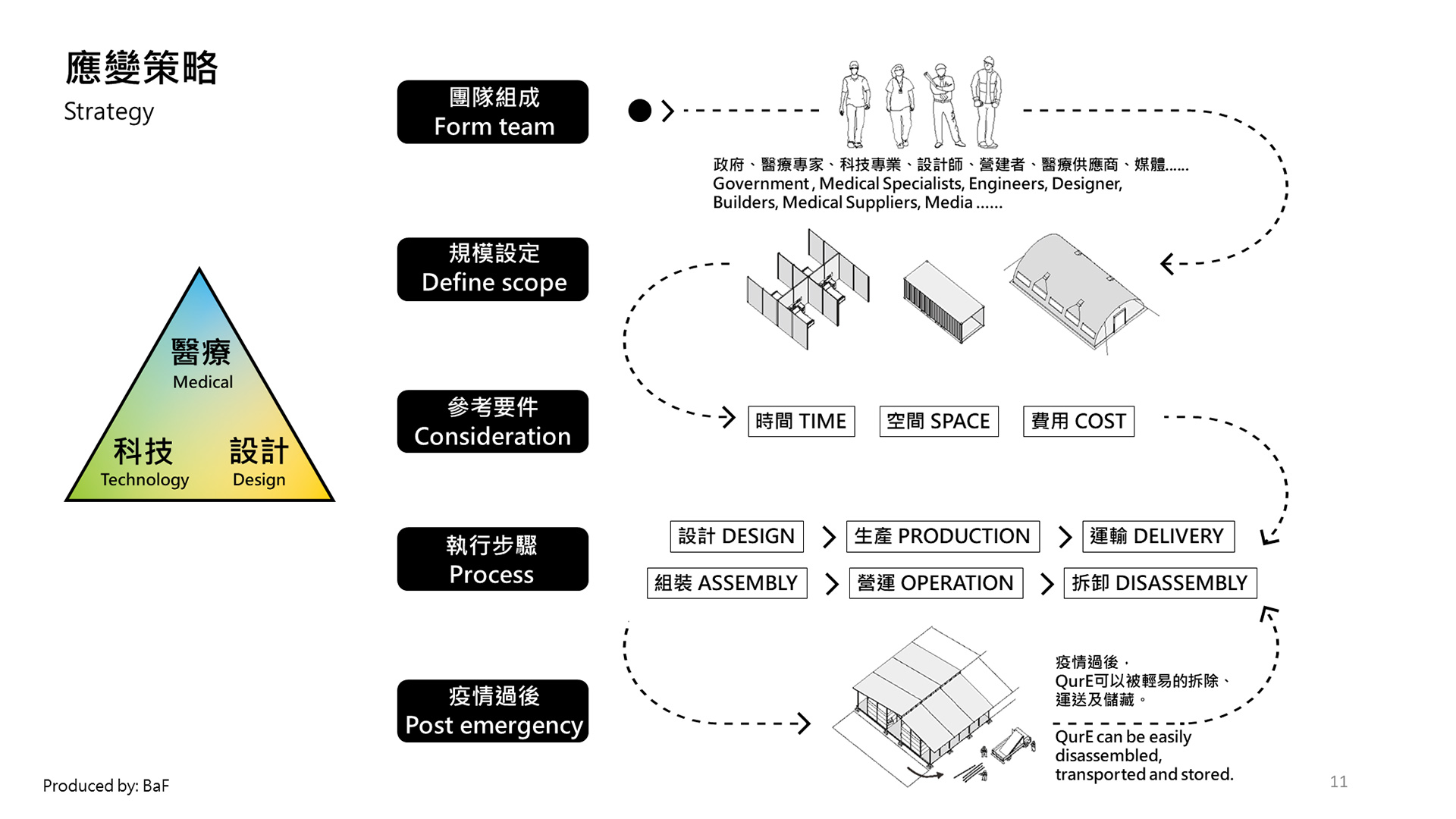

The temporary quarantine hospital shall be easily transported and efficiently stored. We consider the post pandemic situation where all this should be circular. Thus, the system proposed is using a mature building construction technique that can be assemble and disassemble in a short period of time. This will be more sustainable and reduce any waste from the emergency. QurE could be easily modified and be ready for any emergency, including natural catastrophe, in the future.
Project credits:
Design Team
Design and innovation: Bio-architecture Formosana (BaF)
Medical consultancy: NCKU Hospital
Master planning, construction and logistics: Bio-architecture Formosana
Visual identity & graphic design: Bio-architecture Formosana + YSDesign
Digital media and Animation: Bio-architecture Formosana (BaF)

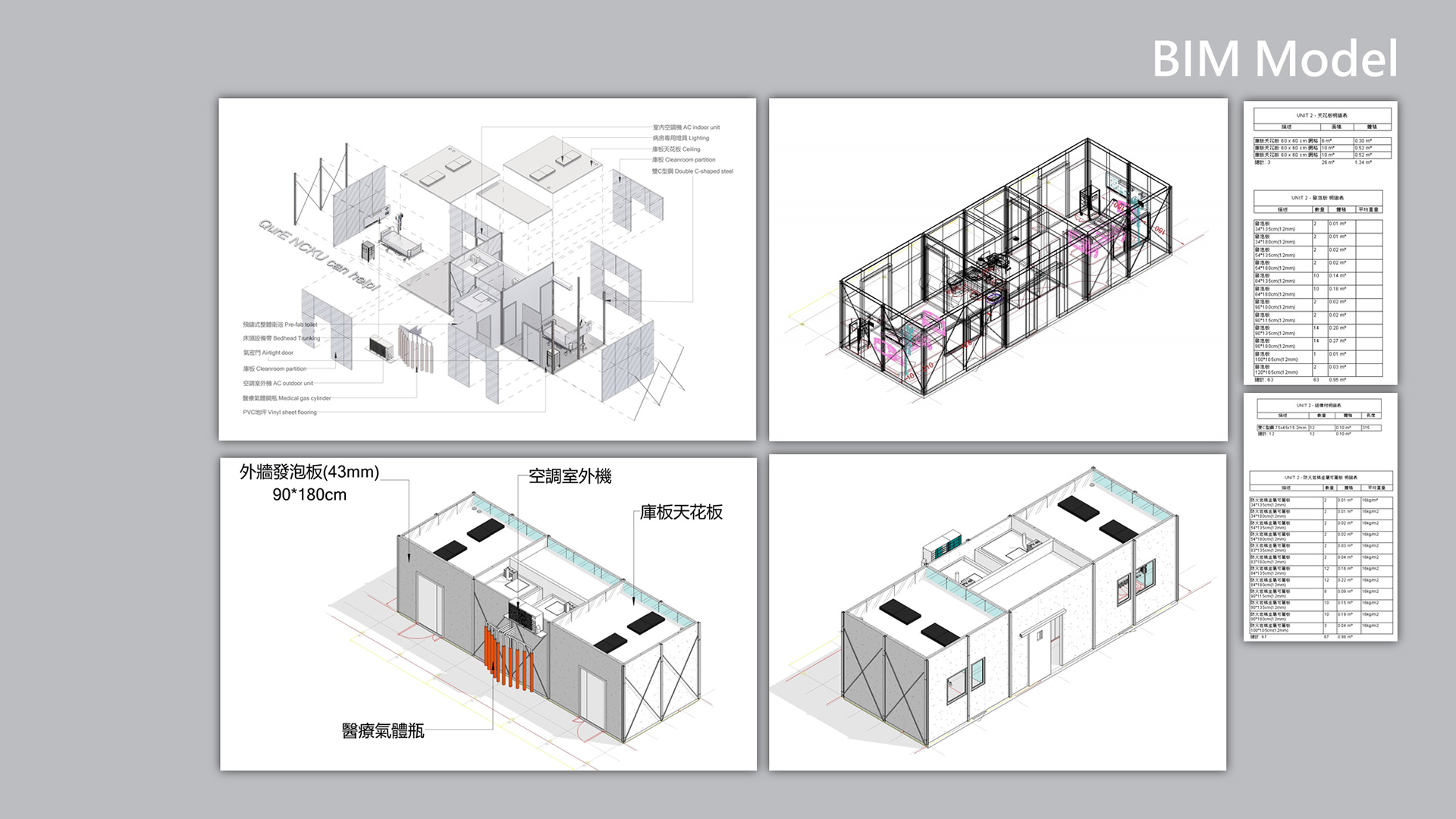

BIM Model: TYarchitects

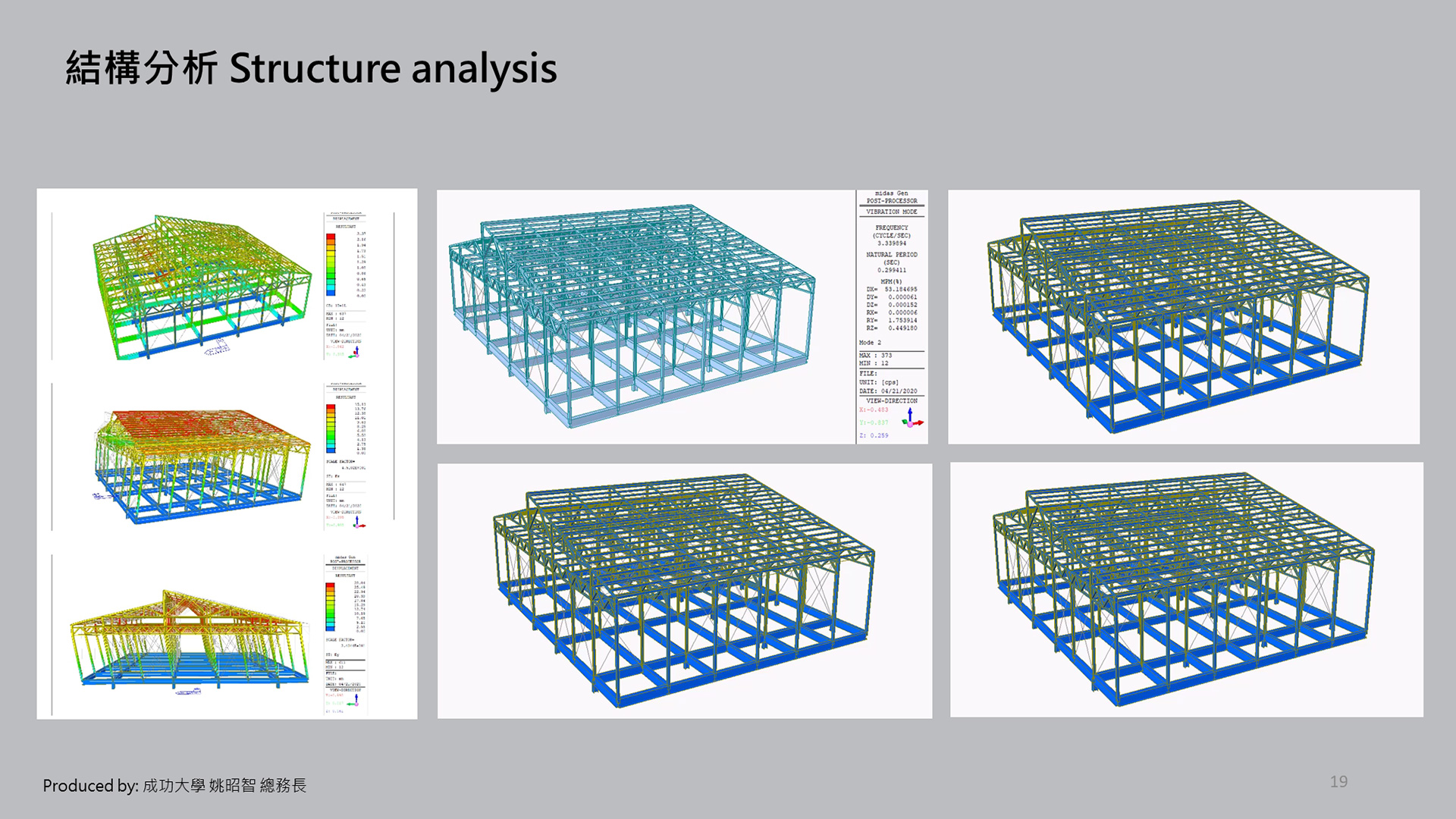

Structural engineering: NCKU
MEP engineering and ventilation: NCKU, GreenHVAC
Website maintenance: NCKU

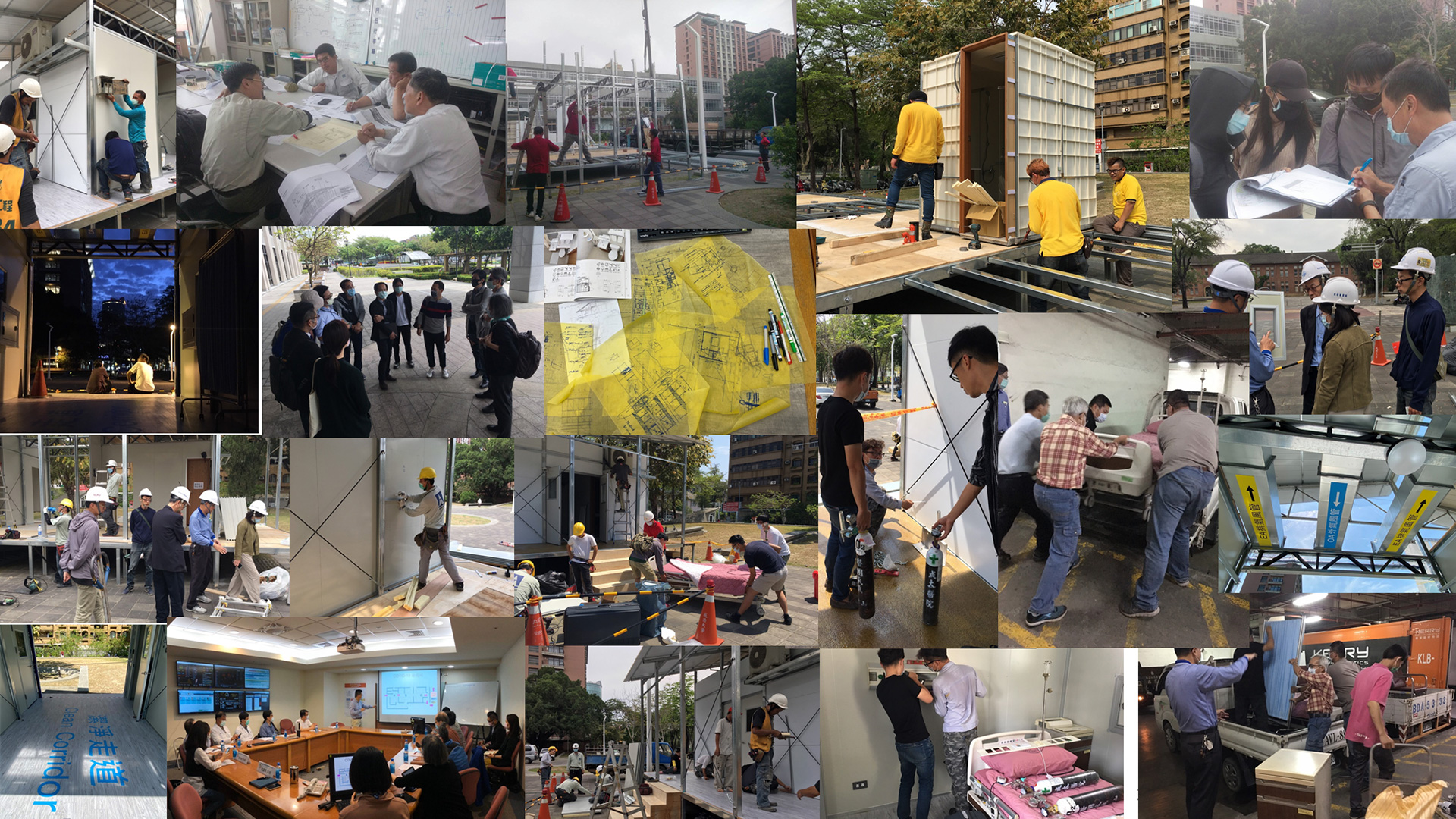

Prototype Team
Mock-up design and project coordination: Bio-architecture Formosana (BaF)
Sponsor: BaF Foundation
Main structure, air-conditioner, solar panel: Reiju Construction
Wall Panel, ceiling, lamp, piping, ventilation duct, anteroom sink, door: JiuHan Engineering
Headboard display in the ward, e-care board: E Ink Holdings Inc.
Prefabricated bathroom: Puda Industrial Co., Ltd.
Hospital beds, medical quarantine equipment display: NCKU Hospital
Medical Equipment: JieMeng Technology Engineering Co., Ltd.
Exhibition (medical ward): Bio-architecture Formosana (BaF)
Exhibition (design manual): NCKU
Press Release: NCKU
Awards:
- Taipei International Design Award — Bronze Award（2020）
- Taipei International Design Award — Judges' Special Award（2020）
- Taipei International Design Award — Social Design Award（2020）
More information：
Bio-architecture Formosana (BaF) designs a circular negative pressure quarantine unit to address the emergency. In response to the Covid-19 pandemic situation, BaF has worked together with a group of experts to develop a prototype for a negative pressure isolation ward and examination station for the emergency quarantine. This proposal aims to address the lack of ward in the hospital for treatment.
In the past two weeks, QurE-team was formed to develop this design. On 28th of April, we have announced the design with a press event at Taiwan National Cheng Kung University (NCKU) K-hall with the presentation of a real-size mock-up at the plaza. On the same day, a website which contains the downloadable design manual of the prototyping was made public. This design will be an open source to share with the global community.
The mobile emergency quarantine hospital proposes a few key considerations which include lightweight, fast, modular, flexible for expansion and reduction, affordable, weatherproof, mobile, safe and secure. The material for this shall be readily available and standardize enough for quick fabrication. The idea considers pre-fabrication and on-site assembly while minimizing in-situ construction. These units can be quickly constructed to respond to various terrains and conditions with minimal changes.
Weather consideration and energy saving is also one of the main design issues of QurE. In the hot and humid climate of Taiwan, pitched roofs and raised floors provide passive insulation and prevent from flooding in the event of typhoon. The ceiling spaces and raised floors accommodate the mechanical, plumbing and medical equipment required for the quarantine unit.
The temporary quarantine hospital shall be easily transported and efficiently stored. We consider the post pandemic situation where all this should be circular. Thus, the system proposed is using a mature building construction technique that can be assemble and disassemble in a short period of time. This will be more sustainable and reduce any waste from the emergency.
QurE could be easily modified and be ready for any emergency, including natural catastrophe, in the future.
